Based on the development Quality first
| Place of Origin: | China Original |
|---|---|
| Brand Name: | ABB |
| Certification: | Product Certification CCS ABS DNV BR KR EC |
| Model Number: | TPS48D01 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Wooden Package,Plywood Case,Carton,Neutral Packing |
| Delivery Time: | 1-5 working days according to the parts of different specifications |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Pcs Per Month |
| Brand: | ABB | Type: | TPS48D01 |
|---|---|---|---|
| Name: | Nozzle Ring | P/N: | 56001 |
| Delivery Time: | 1-10 Working Days According To The Parts Of Different Specifications | EXW: | Shanghai Of China |
| High Light: | marine engine turbocharger,turbocharger nozzle ring |
||

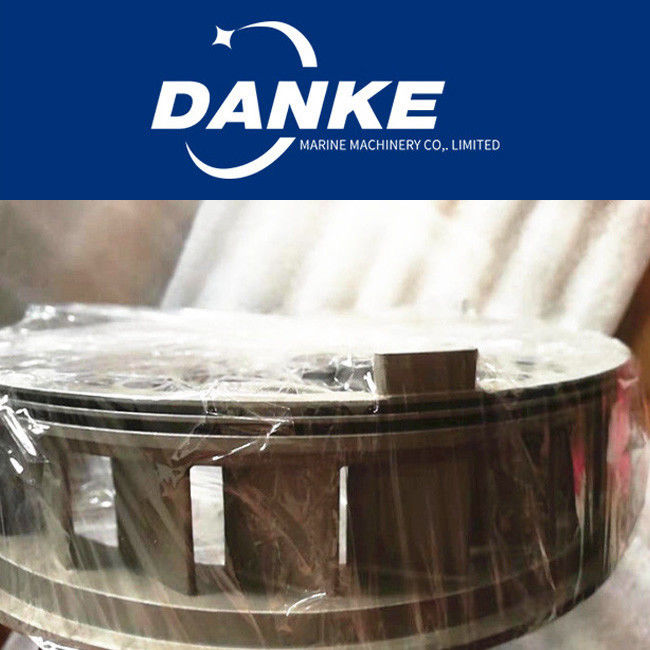

ABB TPS48D01 Nozzle Ring TPS48D01 Turbine Nozzle Ring 56001
Specifications:
| Brand | ABB |
| Type | TPS48D01 |
| Name | Nozzle Ring |
| P/N | 56001 |
| MOQ | 1 |
| Price | Negotiable |
| Payment term | T/T,L/C |
| Supply Ability | 500 Pcs Per Month |
| Packaging Detials | Wooden Package, Plywood Case, Carton, Neutral Packing |
| Place of Origin | China Original |

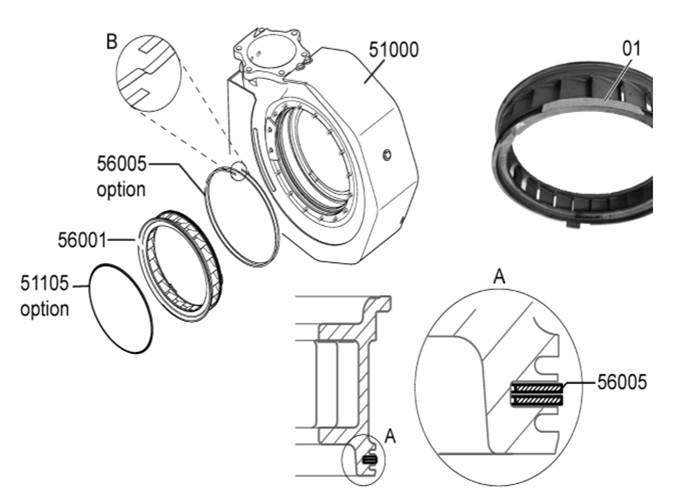

Fit the lamellar sealing ring (56005, if present) in the correct slot (see detail A). When doing this, pay attention to correct winding of the lamellar sealing ring (see detail B).
Secure the lamellar sealing ring with adhesive tape.
Insert the nozzle ring (56001) (with the cam facing forwards) into the turbine casing as far as it will go. Align the cam on the nozzle ring with the recesses of the turbine casing and insert it into the turbine casing (51000) as far as it will go. Do not remove the adhesive tape (01).
Insert the C-ring (51105) into the turbine casing and secure with highvacuum grease
