Place of Origin: | China Original |
---|---|
Brand Name: | IHI |
Certification: | Product Certification CCS ABS DNV BR KR EC |
Model Number: | RH143 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Wooden Package,Plywood Case,Carton,Neutral Packing |
Delivery Time: | 1-10 working days according to the parts of different specifications |
Payment Terms: | T/T, L/C |
Supply Ability: | 500 Pcs Per Month |
Brand: | IHI | Type: | RH143 |
---|---|---|---|
Delivery Time: | 1-10 Working Days According To The Parts Of Different Specifications | EXW: | Shanghai Of China |
Testing:: | Balanced | Warranty:: | Six Months For Turbocharger Complete |
Highlight: | turbocharger nozzle ring,main engine turbocharger |

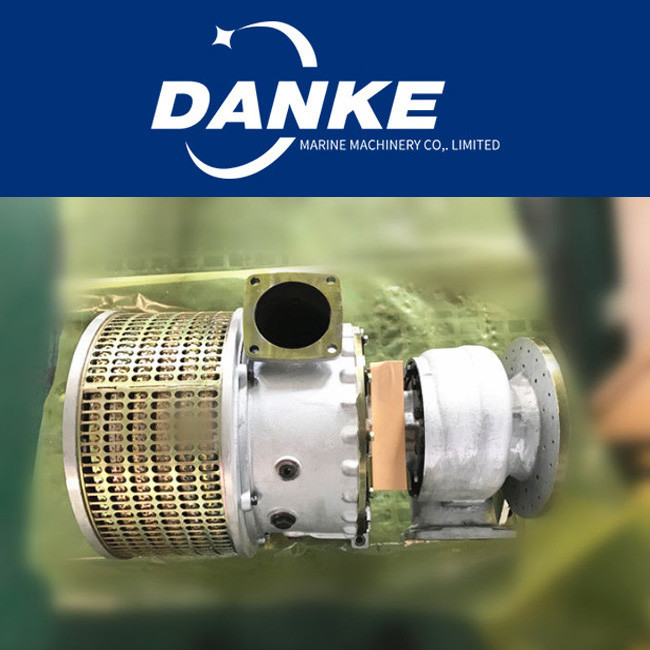

IHI RH143 Marine Engine Turbocharger High Durability Turbocharger Ship Engine Testing Balanced
Description:
IHI RH143 Marine Engine Turbocharger, jointly manufactured by Ishikawajima Harima HeavyIndustries Co.,
Ltd., IHI and Hitachi adopts the advanced concept of aerodynamics. Combinedwith low inertia, lightweight
design and high-quality shaft seal, it has excellent turbochargingreaction at high flow rate and large range,
low mechanical loss of compressor, light weight,stable and reliable operation. The RH series of RH133
,RH143,RH163,RH183 and RH203are mainly used in the air pressurization system of marine power generation
prime mover,which accounts for a large share in the existing ships and is highly praisedby ship owners and
engine technicians
Specifications:
Brand | IHI |
Type | RH143 |
Testing | Balanced |
Warranty | Six Months For Turbocharger Complete |
MOQ | 1 |
Price | Negotiable |
Payment term | T/T,L/C |
Supply Ability | 500 Pcs Per Month |
Packaging Detials | Wooden Package, Plywood Case, Carton, Neutral Packing |
Place of Origin | China Original |
Available RH143 Parts List:
P/N 1001 turbine shaft
P/N 1002 thrust collar
P/N 1004 distance piece
P/N 1006 sealing bush
P/N 1008 shaft end hexagon nut
P/N 1009 seal ring(turbine side)
P/N 1010 seal ring(compressor side)
P/N 2001 compressor wheel
P/N 3001 compressor housing
P/N 3002 compressor side clamp
P/N 3003 hexagon head bolt M8x16
P/N 4001 turbine housing
P/N 4002 turbine side clamp
P/N 4004 hexagon head bolt M10x20
P/N 5001 bearing housing
P/N 5002 snap ring
P/N 5003 hexagon head bolt M6x30
P/N 5004 spring lock washer 6
P/N 5005 heat shield
P/N 5006 o ring G90
P/N 5007 parallel pin
P/N 5008 o ring
P/N 5013 metal seal gasket
P/N 5014 plug
P/N 6001 seal plate(turbine side)
P/N 6002 floating journal bearing
P/N 7001 floating journal bearing
P/N 7002 thrust bearing
P/N 8001 silencer
P/N 8002 air filter
P/N 8003 hexagon head bolt M8x34
P/N 8004 spring lock washer 8
Turbocharger Model List:
IHI TURBOCHARGER
IHI RH133
IHI RH143
IHI RH163
IHI RH183
IHI RH203 RH233 RH233(-Y)
IHI RU110 RU110-1A AT14-1 AT14
IHI AT14-16
