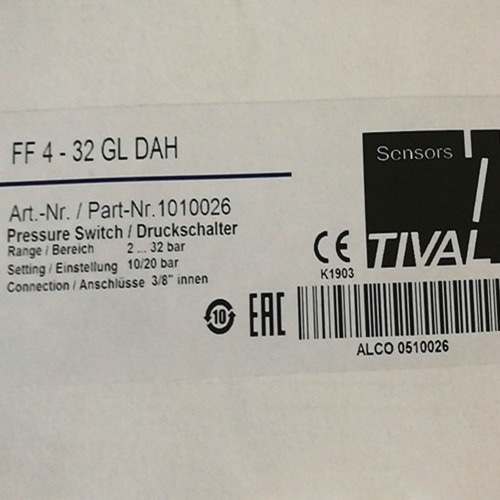

TIVAL Pressure Switch FF4-32GL DAH High Repeatability Marine Electrical Equipment

TIVAL Pressure Switch FF4-32GL DAH High Repeatability Marine Electrical Equipment
TIVAL Pressure Switch FF4-32GL DAH High Repeatability Marine Electrical Equipment TIVAL Pressure Switch FF4-32GL DAH High Repeatability Marine Electrical Equipment TIVAL Pressure Switch FF4-32GL DAH High Repeatability Marine Electrical Equipment
Basic Information
Place of Origin: China Original
Brand Name: TIVAL
Certification: Product Certification CCS ABS DNV BR KR EC
Model Number: FF4-32GL DAH
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package,Plywood Case,Carton,Neutral Packing
Delivery Time: 1-10 working days according to the parts of different specifications
Payment Terms: T/T, L/C
Supply Ability: 500 Pcs Per Month
Get Best Price Contact Now
Brand: TIVAL Type: FF4-32GL DAH
Name: Pressure Switch EXW: Shanghai Of China
High Light:

ship electrical equipment

,

boat electrical equipment

TIVAL Pressure Switch FF4-32GL DAH Pressure switch FF 4 DAH(G)



Specifications:



Brand TIVAL
Type FF4-32GL
EXW Shanghai Of China
Delivery Time 1-10 Working Days According To The Parts Of Different Specifications
MOQ 1
Price Negotiable
Payment term T/T
Supply Ability 500 Pcs Per Month
Packaging Detials Wooden Package, Plywood Case, Carton, Neutral Packing
Place of Origin OEM/Original

Product description Pressure switch FF 4-... DAH(G)

Mechanical Pressure switch with perbunan diaphragm and pressure connector G 3/8“ Female thread, ALSi 12
Pressure range from 0,11...32 bar
Ample wiring room
Easy to adjust, upper and lower switch points can be adjusted independently of each other
High repeatability
Easily read scale
Pressure connector G 3/8“ Female thread, ALSi 12. VDE 0660, IEC 337-1, IEC 553-1
Monitoring and controlling the pressure of liquid or gaseous media in
pipelines, tanks, vats, pressure vessels, firefighting equipment and apparatus



Order
reference

Upper
switch point
adjustable (bar)

 Lower
switch point
adjustable (bar)		 Smallest
diff.*
(bar)		 Max.
operating
pressure (bar)		 Max.
test
pressure (bar)		 Standard
setting
(bar)		 Part No.

FF 4-2 DAH 0,11 ... 2 0,04 ... 1,89 0,07 0,11 20 40 0,5 / 1,5 1010061
FF 4-2 DAH G 0,11 ... 2 0,04 ... 1,89 0,07 0,11 20 40 0,5 / 1,5 1010109
FF 4-4 DAH 0,22 ... 4 0,07 ... 3,75 0,15 0,25 24 40 1 / 3 1010062
FF 4-4 DAH G 0,22 ... 4 0,07 ... 3,75 0,15 0,25 24 40 1 / 3 1010012
FF 4-8 DAH 0,5 ... 8 0,2 ... 7,5 0,3 0,5 30 40 2 / 6 1010078
FF 4-8 DAH G 0,5 ... 8 0,2 ... 7,5 0,3 0,5 30 40 2 / 6 1010096
FF 4-16 DAH 1 ... 16 0,4 ... 15 0,6 1 36 48 4 / 12 1010081
FF 4-16 DAH G 1 ... 16 0,4 ... 15 0,6 1 36 48 4 / 12 1010102
FF 4-32 DAH 2 ... 32 0,8 ... 30 1,2 2 52 64 10 / 20 1010076
FF 4-32 DAH G 2 ... 32 0,8 ... 30 1,2 2 52 64 10 / 20 1010003




TIVAL Pressure Switch FF4-32GL DAH High Repeatability Marine Electrical Equipment 0
