Home / Products / Marine Air Compressor Parts

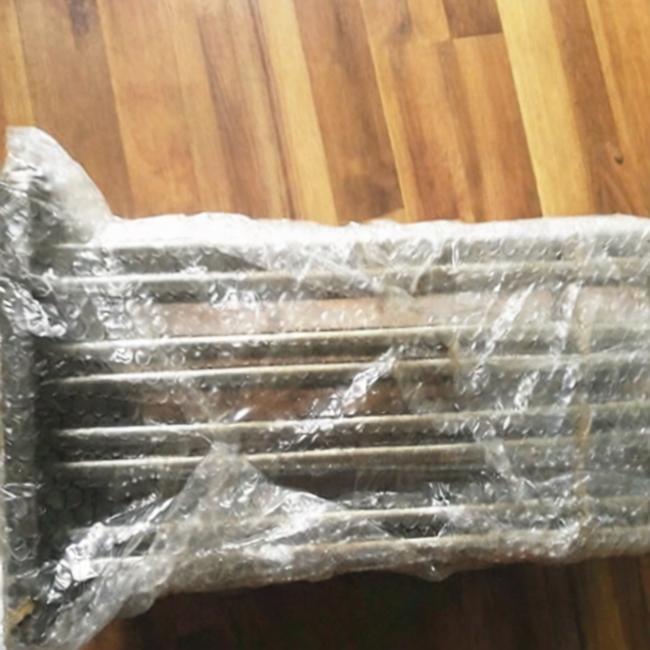

MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship

MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship
MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship
Basic Information
Place of Origin: China Original
Brand Name: MACGREGOR
Certification: Product Certification CCS ABS DNV BR KR EC
Model Number: V150
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package,Plywood Case,Carton,Neutral Packing
Delivery Time: 1-10 working days according to the parts of different specifications
Payment Terms: T/T, L/C
Supply Ability: 500 Pcs Per Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Brand: MACGREGOR Type: V150
P/N: 91 Name: Tubenest Assembly
High Light:

marine compressor parts

,

air compressor replacement parts

TUBENEST ASSEMBLY MAC MACGREGOR V150 HAMWORTHY V150 MAIN AIR COMPRESSOR



Specifications:



Brand MACGREGOR
Type V150
Delivery Time 1-10 Working Days According To The Parts Of Different Specifications
EXW Shanghai Of China
MOQ 1
Price Negotiable
Payment term T/T,L/C
Supply Ability 500 Pcs Per Month
Packaging Detials Wooden Package, Plywood Case, Carton, Neutral Packing
Place of Origin China Original



MAIN AIR COMPRESSOR
HAMWORTHY MODEL V150
PRESS:29.41bair,CAP:105m³,RPM:1800

TUBENEST ASSY P/N 91



1, PIN SPRING TENSION P/N 3
2, BEARING TAPER ROLLER (MAIN NON DRIVE END) P/N 4
3, BEARING TAPER ROLLER (MAIN DRIVE END) P/N 5
4, OIL SEAL P/N 6
5, O RING (ADJUSTING SLEEVE TO BEARING & CRANKSHAFT) P/N 7
6, SPACER-CONNECTING ROD/SHAFT P/N 18
7, CLAMPING WASHER-C/SHAFTCONN.ROD P/N 22
8, SET SCREW P/N 23
9, TAB WASHER P/N 24
10, BEARING-BIG END CYLINDRICAL ROLLER 1P/N 6
11, CONNECTING ROD (1ST STAGE) P/N 15
12, BEARING-SMALL END NEEDLE ROLLER P/N 17
13, GUDGEON PIN (FIRST STAGE) P/N 40
14, HEXAGON SOCKET SET SCREW P/N 41
15, LOCK NUT P/N 42
16, PISTON (FIRST STAGE) P/N 35
17, PISTON RING S.O.C P/N 36
18, PISTON RING TAPER FACED P/N 37
19, PISTON RING BARREL FACED P/N 38
20, CONNECTING ROD (2ND STAGE) P/N 19
21, BEARING-BIG END CYLINDRICAL ROLLER P/N 20
22, BEARING- SMALL END NEEDLE ROLLER P/N 21
23, GUDGEON PIN (SECOND STAGE) P/N 64
24, SOCKET SET SCREW P/N 65
25, PISTON (SECOND STAGE) P/N 60
26, PISTON RING S.O.C P/N 61
27, PISTON RING TAPPER FACED P/N 62
28, PISTON RING BARREL FACED P/N 63
29, O RING (SECOND STAGE VALVE CAGE BOTTOM GROOVE TO CYLINDER P/N 72
30, O RING (SECOND STAGE CONCENTRIC VALVE TOP FACE TO VALVE CAGE) P/N 77
31, ANTI-EXTRUSION RING (V375 ONLY) P/N 81
32, O RING (SECOND STAGE CONCENTRIC VALVE OUTER GROOVE TO CYLINDER) P/N 76
33, PRESSURE GAUGE (PANEL MOUNT) 0-10 BAR P/N 284
34, PRESSURE GAUGE (PANEL MOUNTH) 0-60 BAR P/N 285
35, Gasket (tubenest to cooler box) P/N 92
36, BOLT/ADJUSTING SCREW P/N 94

MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship 0

Tag:

air compressor replacement parts,

marine compressor parts,

air compressor spare parts
